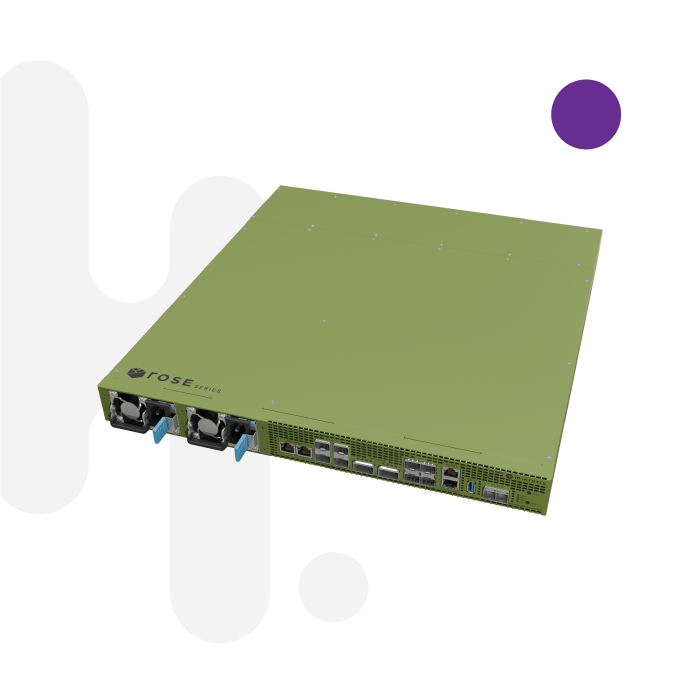

RDS2216 – Mikrotik ROSE Data server (RDS)
The RDS delivers an all-in-one solution combining ultra-fast storage, 100G networking, and container capabilities for demanding enterprise workloads. This powerful platform features:

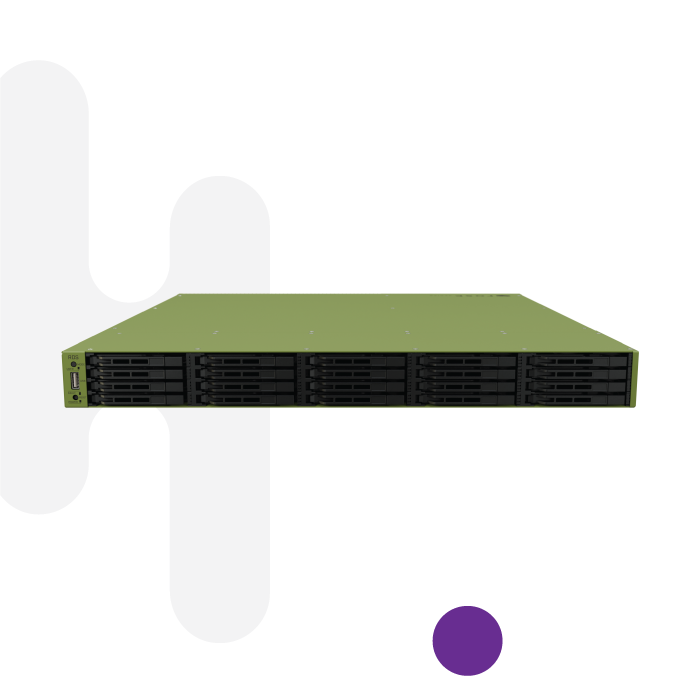

- 20 U.2 NVMe slots for high-density, low-latency storage
- RouterOS Edition for Storage & Compute (ROSE) – a specialized OS for optimized performance
- 100G networking for high-speed data transfer
- Enterprise-grade reliability for mission-critical operations
Specifications
CPU: AL73400
CPU core count: 16
CPU nominal frequency: 2000 MHz
Switch chip model: 98DX4310
RouterOS license: 6
Operating System: RouterOS v7 (Special ROSE edition)
Size of RAM: 32 GB
Storage size: 128 MB
Storage type: NAND
IPsec hardware acceleration: Yes
Powering
Number of AC inputs: 2
AC input range: 100-240
Frequency (Hz): 50-60
Max power consumption: 286 W
Max power consumption without attachments 105 W
Cooling type: 10 fans
Ethernet
10/100/1000 Ethernet ports: 1
Number of 1G/2.5G/5G/10G Ethernet ports: 2
Fiber
SFP+ ports: 4
Number of 25G SFP28 ports: 4
Number of 100G QSFP28 ports: 2
Peripherals
Serial console port: RJ45
Number of USB ports: 2
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current: (A) 1
Number of M.2 slots: 2
